آموزش ساخت AutoCompleteTextBox در WPF

دوشنبه ۱۴ مهر ۱۳۹۹
بازدید ۹۹۰ نفر
آرتین
(14 امتیاز از 3 رای)
Loading...

تصویر wpf-auto-complete-textbox_9197 آموزش ساخت AutoCompleteTextBox در WPF

آموزش ساخت AutoCompleteTextBox در WPF

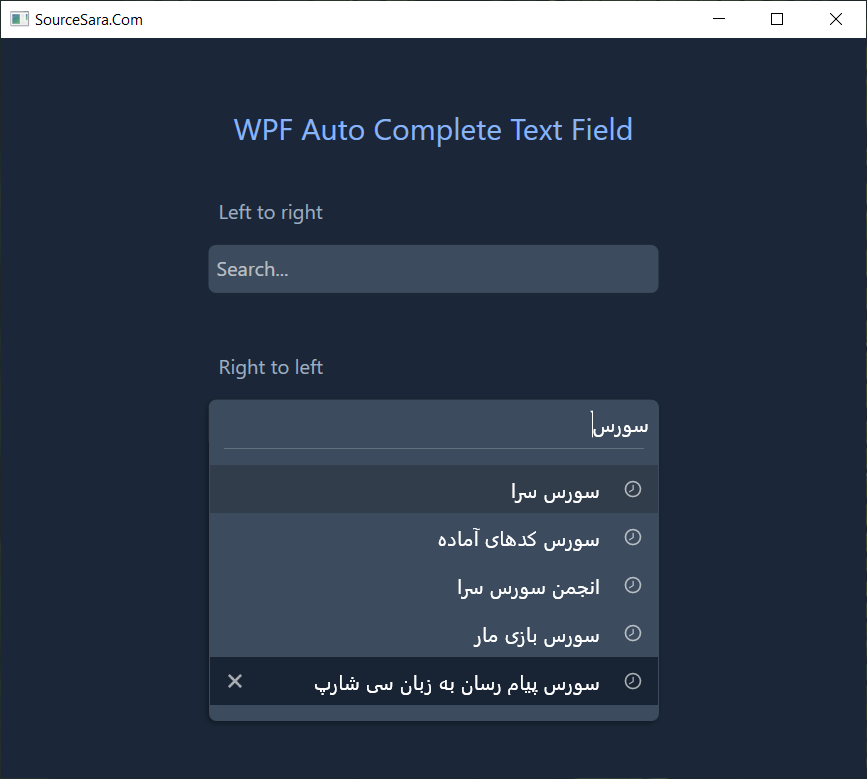

در این بخش آموزش ساخت AutoCompleteTextBox در WPF را برای شما آماده کرده ایم که یک آموزش مناسب برای ساخت کنترل های سفارشی با استفاده از زبان برنامه نویسی سی شارپ و تکنولوژی Xaml است. در ادامه می توانید توضیحات، تصاویر و فیلمی از نتیجه نهایی را مشاهده کنید. همچنین سورس کد پروژه نیز به صورت رایگان برای دانلود قرار داده شده است.

توضیحات

برای ساخت این پروژه از نرم افزار Visual Studio نسخه ۲۰۱۹ و فریم ورک .Net Core 3.1 استفاده شده است. البته شما می توانید با اعمال تغییرات کوچکی پروژه را در نسخه های پایین تر نیز پیاده سازی کنید. نتیجه نهایی به شکل زیر خواهد بود.

تصویر wpf-auto-complete-textbox_9197_3 آموزش ساخت AutoCompleteTextBox در WPF

مراحل آموزش

ایجاد پروژه WPF Custom Control Library
ایجاد کنترل AutoCompleteTextField
ایجاد پروژه WPF
استفاده از کنترل AutoCompleteTextField

ایجاد پروژه WPF Custom Control Library

ابتدا یک Blank Solution ایجاد کنید و سپس یک پروژه از نوع WPF Custom Control Library به آن اضافه کنید.

ایجاد کنترل AutoCompleteTextField

بعد از ایجاد شدن پروژه Custom Control Library آیتم هایی به صورت پیش فرض ایجاد می شوند را پاک کنید و یک آیتم جدید از نوع Custom Control با نام AutoCompleteTextField را به پروژه اضافه کنید. سپس محتوای فایل AutoCompleteTextField.cs را به شکل زیر تغییر دهید.

using System;
using System.Collections.Generic;
using System.Linq;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Controls.Primitives;
using System.Windows.Input;
using System.Windows.Media;

namespace AutoCompleteTextBox
{
    public class AutoCompleteTextField : Control
    {
        #region Fields

        private const string TextBoxPartName = "PART_TextBox";
        private const string PopupTextBoxPartName = "PART_PopupTextBox";
        private const string SuggestionPopupPartName = "PART_SuggestionPopup";
        private const string SuggestionListBoxPartName = "PART_SuggestionListBox";

        private TextBox _textBox;
        private TextBox _popupTextBox;
        private Popup _suggestionPopup;
        private ListBox _suggestionListBox;

        #endregion

        #region Constructors

        static AutoCompleteTextField()
        {
            DefaultStyleKeyProperty.OverrideMetadata(typeof(AutoCompleteTextField),
                new FrameworkPropertyMetadata(typeof(AutoCompleteTextField)));
        }

        public AutoCompleteTextField()
        {
            Loaded += (sender, args) => RegisterEventHandlers();
            Unloaded += (sender, args) => UnregisterEventHandlers();
        }

        #endregion

        #region Base methods

        public override void OnApplyTemplate()
        {
            base.OnApplyTemplate();
            LoadControls();

            var selectItemCommandBinding = new CommandBinding(SelectItemCommand, HandleSelectItemCommand);
            CommandBindings.Add(selectItemCommandBinding);
        }

        protected override void OnMouseDown(MouseButtonEventArgs e)
        {
            base.OnMouseDown(e);
            _textBox.Focus();
        }

        #endregion

        #region Static commands

        public static RoutedCommand SelectItemCommand = new RoutedCommand();

        #endregion

        #region Command handlers

        private void HandleSelectItemCommand(object sender, ExecutedRoutedEventArgs e)
        {
            _suggestionListBox.SelectedItem = e.Parameter;
            OnItemSelected();
        }

        #endregion

        #region Helper methods

        private void LoadControls()
        {
            _textBox = GetTemplateChild(TextBoxPartName) as TextBox;
            _suggestionPopup = GetTemplateChild(SuggestionPopupPartName) as Popup;
            _popupTextBox = GetTemplateChild(PopupTextBoxPartName) as TextBox;
            _suggestionListBox = GetTemplateChild(SuggestionListBoxPartName) as ListBox;
        }

        private void RegisterEventHandlers()
        {
            PreviewKeyDown += OnPreviewKeyDown;
            KeyDown += OnKeyDown;
            _textBox.GotMouseCapture += OnTextBoxGotMouseCapture;
            _textBox.TextChanged += OnTextBoxTextChanged;
            _textBox.PreviewKeyDown += OnTextBoxPreviewKeyDown;
            _popupTextBox.PreviewKeyDown += OnPopupTextBoxPreviewKeyDown;
            _suggestionPopup.Opened += OnSuggestionPopupOpened;
            _suggestionPopup.Closed += OnSuggestionPopupClosed;
        }

        private void UnregisterEventHandlers()
        {
            PreviewKeyDown -= OnPreviewKeyDown;
            _textBox.GotMouseCapture -= OnTextBoxGotMouseCapture;
            _textBox.TextChanged -= OnTextBoxTextChanged;
            _textBox.PreviewKeyDown -= OnTextBoxPreviewKeyDown;
            _popupTextBox.PreviewKeyDown -= OnPopupTextBoxPreviewKeyDown;
            _suggestionPopup.Opened -= OnSuggestionPopupOpened;
            _suggestionPopup.Closed -= OnSuggestionPopupClosed;
        }

        private string GetSelectedItem()
            => (_suggestionListBox.SelectedItem as AutoCompleteTextFieldMatchResult).Item;

        private void OnItemSelected()
        {
            _textBox.Text = GetSelectedItem();
            _textBox.CaretIndex = _textBox.Text.Length;
            _textBox.Focus();

            _suggestionPopup.IsOpen = false;

            if (ItemSelectionCommand is null)
                return;

            if (ItemSelectionCommand.CanExecute(Text))
            {
                ItemSelectionCommand.Execute(Text);
                ClosePopup();
            }
        }

        private void ClosePopup()
        {
            _suggestionListBox.ItemsSource = null;
            _suggestionPopup.IsOpen = false;
        }

        private void CreateSuggestion()
        {
            if (!IsLoaded)
                return;

            if (ItemsSource is null || ItemsSource.Count() == 0)
            {
                ClosePopup();
                return;
            }

            var value = _textBox.Text.ToLower();
            var filteredItems = new List<AutoCompleteTextFieldMatchResult>();

            ItemsSource.ToList().ForEach(i =>
            {
                var matchInfo = IsMatch(value, i.ToLower());

                if (matchInfo.Percentage >= MinimumMatchPercentage)
                    filteredItems.Add(matchInfo);

            });

            filteredItems = filteredItems.OrderByDescending(i => i.Percentage).Take(MaxSuggestionItems).ToList();

            if (filteredItems.Count() == 1 && filteredItems.First().Item.Equals(_textBox.Text, StringComparison.OrdinalIgnoreCase))
            {
                ClosePopup();
                return;
            }

            if (filteredItems.Count() > 0)
            {
                _suggestionListBox.ItemsSource = filteredItems;
                _suggestionListBox.SelectedIndex = 0;
                _suggestionPopup.IsOpen = true;
                return;
            }

            ClosePopup();
        }

        private AutoCompleteTextFieldMatchResult IsMatch(string input, string suggestedItem)
        {
            var inputWords = input.Split(' ');
            var totalMatchPercentage = inputWords.Length * 100;
            var matchedWords = new List<AutoCompleteTextFieldMatchResult>();

            foreach (var inputWord in inputWords)
            {
                var matchInfo = GetWordMatchInfo(inputWord, suggestedItem);
                matchedWords.Add(matchInfo);
            }

            var matchedWordsPercentage = matchedWords.Sum(i => i.Percentage);
            var percentage = (matchedWordsPercentage * 100) / totalMatchPercentage;

            return new AutoCompleteTextFieldMatchResult { Percentage = percentage, Item = suggestedItem };
        }

        private AutoCompleteTextFieldMatchResult GetWordMatchInfo(string input, string suggestedItem)
        {
            var inputChars = input.ToCharArray();
            var suggestedItemWords = suggestedItem.Split(' ');
            var matchInfo = new AutoCompleteTextFieldMatchResult();

            foreach (var word in suggestedItemWords)
            {
                if (input == word)
                {
                    matchInfo.Percentage = 100;
                    return matchInfo;
                }

                if (word.Length < input.Length)
                    continue;

                var wordChars = word.ToCharArray();
                var matchCount = GetMatchCount(inputChars, wordChars);

                var matchPercentage = matchCount * 100 / wordChars.Length;

                if (matchCount > 1)
                {
                    matchInfo.Percentage = matchPercentage;
                    return matchInfo;
                }
            }

            return matchInfo;
        }

        private static int GetMatchCount(char[] input, char[] word)
        {
            if (input.Length == 0 || word.Length == 0)
                return 0;

            int counter;

            for (var i = 0; i < word.Length; i++)
            {
                counter = 0;

                if (word[i] != input[0])
                    continue;

                for (int j = 0, k = i; j < input.Length; j++, k++)
                {
                    if (k < word.Length && word[k] == input[j])
                        counter++;
                }

                if (counter == input.Length)
                    return counter;
            }

            return 0;
        }

        #endregion

        #region Event handlers

        private void OnPreviewKeyDown(object sender, KeyEventArgs e)
        {
            if (e.Key == Key.Enter && _suggestionPopup.IsOpen)
            {
                OnItemSelected();
                return;
            }

            if (e.Key == Key.Escape)
            {
                ClosePopup();
                return;
            }
        }

        private void OnKeyDown(object sender, KeyEventArgs e)
        {
            if (SubmitByEnterCommand is null || e.Key != Key.Return)
                return;

            if (SubmitByEnterCommand.CanExecute(Text))
            {
                SubmitByEnterCommand.Execute(Text);
                ClosePopup();
            }
        }

        private void OnTextBoxPreviewKeyDown(object sender, KeyEventArgs e)
        {
            if (e.Key == Key.Space && e.KeyboardDevice.Modifiers == ModifierKeys.Control)
            {
                e.Handled = true;
                CreateSuggestion();
                return;
            }
        }

        private void OnPopupTextBoxPreviewKeyDown(object sender, KeyEventArgs e)
        {
            if (e.Key == Key.Down && _suggestionListBox.Items.Count > 0)
            {
                _suggestionPopup.IsOpen = true;

                if (_suggestionListBox.SelectedIndex < _suggestionListBox.Items.Count)
                    _suggestionListBox.SelectedIndex++;

                return;
            }

            if (e.Key == Key.Up && _suggestionListBox.Items.Count > 0)
            {
                _suggestionPopup.IsOpen = true;

                if (_suggestionListBox.SelectedIndex > 0)
                    _suggestionListBox.SelectedIndex--;

                return;
            }
        }

        private void OnTextBoxGotMouseCapture(object sender, MouseEventArgs e)
        {
            if (_suggestionPopup.IsOpen)
                return;

            if (_suggestionListBox.Items.Count > 0)
            {
                _suggestionPopup.IsOpen = true;
                _popupTextBox.CaptureMouse();
            }
        }

        private void OnTextBoxTextChanged(object sender, TextChangedEventArgs e)
        {
            CreateSuggestion();
        }

        private void OnSuggestionPopupOpened(object sender, EventArgs e)
        {
            _popupTextBox.CaretIndex = _popupTextBox.Text.Length;
            _popupTextBox.Focus();
        }

        private void OnSuggestionPopupClosed(object sender, EventArgs e)
        {
            _textBox.CaretIndex = _popupTextBox.Text.Length;
            _textBox.Focus();
        }

        #endregion

        #region DependencyProperty : ItemsSource

        public IEnumerable<string> ItemsSource
        {
            get { return (IEnumerable<string>)GetValue(ItemsSourceProperty); }
            set { SetValue(ItemsSourceProperty, value); }
        }

        public static readonly DependencyProperty ItemsSourceProperty =
            DependencyProperty.Register(nameof(ItemsSource),
                typeof(IEnumerable<string>), typeof(AutoCompleteTextField),
                new UIPropertyMetadata(default, OnItemsSourceChanged));

        private static void OnItemsSourceChanged(DependencyObject d, DependencyPropertyChangedEventArgs e)
        {
            if (d is AutoCompleteTextField autoCompleteTextField)
                autoCompleteTextField.CreateSuggestion();
        }

        #endregion

        #region DependencyProperty : MinimumMatchPercentage

        public int MinimumMatchPercentage
        {
            get { return (int)GetValue(MinimumMatchPercentageProperty); }
            set { SetValue(MinimumMatchPercentageProperty, value); }
        }

        public static readonly DependencyProperty MinimumMatchPercentageProperty =
            DependencyProperty.Register(nameof(MinimumMatchPercentage),
                typeof(int), typeof(AutoCompleteTextField),
                new UIPropertyMetadata(default));

        #endregion

        #region DependencyProperty : MaxSuggestionItems

        public int MaxSuggestionItems
        {
            get { return (int)GetValue(MaxSuggestionItemsProperty); }
            set { SetValue(MaxSuggestionItemsProperty, value); }
        }

        public static readonly DependencyProperty MaxSuggestionItemsProperty =
            DependencyProperty.Register(nameof(MaxSuggestionItems),
                typeof(int), typeof(AutoCompleteTextField),
                new UIPropertyMetadata(default));

        #endregion

        #region DependencyProperty : Text

        public string Text
        {
            get { return (string)GetValue(TextProperty); }
            set { SetValue(TextProperty, value); }
        }

        public static readonly DependencyProperty TextProperty =
            DependencyProperty.Register(nameof(Text),
                typeof(string), typeof(AutoCompleteTextField),
                new FrameworkPropertyMetadata(default, FrameworkPropertyMetadataOptions.BindsTwoWayByDefault));

        #endregion

        #region DependencyProperty : Hint

        public object Hint
        {
            get { return GetValue(HintProperty); }
            set { SetValue(HintProperty, value); }
        }

        public static readonly DependencyProperty HintProperty =
            DependencyProperty.Register(nameof(Hint),
                typeof(object), typeof(AutoCompleteTextField),
                new UIPropertyMetadata(default));

        #endregion

        #region DependencyProperty : CornerRadius

        public CornerRadius CornerRadius
        {
            get { return (CornerRadius)GetValue(CornerRadiusProperty); }
            set { SetValue(CornerRadiusProperty, value); }
        }

        public static readonly DependencyProperty CornerRadiusProperty =
            DependencyProperty.Register(nameof(CornerRadius),
                typeof(CornerRadius), typeof(AutoCompleteTextField),
                new UIPropertyMetadata(default));

        #endregion

        #region DependencyProperty : RemoveItemCommand

        public ICommand RemoveItemCommand
        {
            get { return (ICommand)GetValue(RemoveItemCommandProperty); }
            set { SetValue(RemoveItemCommandProperty, value); }
        }

        public static readonly DependencyProperty RemoveItemCommandProperty =
            DependencyProperty.Register(nameof(RemoveItemCommand),
                typeof(ICommand), typeof(AutoCompleteTextField),
                new UIPropertyMetadata(default));

        #endregion

        #region DependencyProperty : SubmitByEnterCommand

        public ICommand SubmitByEnterCommand
        {
            get { return (ICommand)GetValue(SubmitByEnterCommandProperty); }
            set { SetValue(SubmitByEnterCommandProperty, value); }
        }

        public static readonly DependencyProperty SubmitByEnterCommandProperty =
            DependencyProperty.Register(nameof(SubmitByEnterCommand),
                typeof(ICommand), typeof(AutoCompleteTextField),
                new UIPropertyMetadata(default));

        #endregion

        #region DependencyProperty : ItemSelectionCommand

        public ICommand ItemSelectionCommand
        {
            get { return (ICommand)GetValue(ItemSelectionCommandProperty); }
            set { SetValue(ItemSelectionCommandProperty, value); }
        }

        public static readonly DependencyProperty ItemSelectionCommandProperty =
            DependencyProperty.Register(nameof(ItemSelectionCommand),
                typeof(ICommand), typeof(AutoCompleteTextField),
                new UIPropertyMetadata(default));

        #endregion

        #region DependencyProperty : ListBoxSelectedItemBackground

        public Brush ListBoxSelectedItemBackground
        {
            get { return (Brush)GetValue(ListBoxSelectedItemBackgroundProperty); }
            set { SetValue(ListBoxSelectedItemBackgroundProperty, value); }
        }

        public static readonly DependencyProperty ListBoxSelectedItemBackgroundProperty =
            DependencyProperty.Register(nameof(ListBoxSelectedItemBackground),
                typeof(Brush), typeof(AutoCompleteTextField),
                new UIPropertyMetadata(default));

        #endregion

        #region DependencyProperty : ListBoxItemMouseOverBackground

        public Brush ListBoxItemMouseOverBackground
        {
            get { return (Brush)GetValue(ListBoxItemMouseOverBackgroundProperty); }
            set { SetValue(ListBoxItemMouseOverBackgroundProperty, value); }
        }

        public static readonly DependencyProperty ListBoxItemMouseOverBackgroundProperty =
            DependencyProperty.Register(nameof(ListBoxItemMouseOverBackground),
                typeof(Brush), typeof(AutoCompleteTextField),
                new UIPropertyMetadata(default));

        #endregion

        #region DependencyProperty : SuggestionListMaxHeight

        public double SuggestionListMaxHeight
        {
            get { return (double)GetValue(SuggestionListMaxHeightProperty); }
            set { SetValue(SuggestionListMaxHeightProperty, value); }
        }

        public static readonly DependencyProperty SuggestionListMaxHeightProperty =
            DependencyProperty.Register(nameof(SuggestionListMaxHeight),
                typeof(double), typeof(AutoCompleteTextField),
                new UIPropertyMetadata(default));

        #endregion
    }
}

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

256

257

258

259

260

261

262

263

264

265

266

267

268

269

270

271

272

273

274

275

276

277

278

279

280

281

282

283

284

285

286

287

288

289

290

291

292

293

294

295

296

297

298

299

300

301

302

303

304

305

306

307

308

309

310

311

312

313

314

315

316

317

318

319

320

321

322

323

324

325

326

327

328

329

330

331

332

333

334

335

336

337

338

339

340

341

342

343

344

345

346

347

348

349

350

351

352

353

354

355

356

357

358

359

360

361

362

363

364

365

366

367

368

369

370

371

372

373

374

375

376

377

378

379

380

381

382

383

384

385

386

387

388

389

390

391

392

393

394

395

396

397

398

399

400

401

402

403

404

405

406

407

408

409

410

411

412

413

414

415

416

417

418

419

420

421

422

423

424

425

426

427

428

429

430

431

432

433

434

435

436

437

438

439

440

441

442

443

444

445

446

447

448

449

450

451

452

453

454

455

456

457

458

459

460

461

462

463

464

465

466

467

468

469

470

471

472

473

474

475

476

477

478

479

480

481

482

483

484

485

486

487

488

489

490

491

492

493

494

495

496

497

498

499

500

501

502

503

504

505

506

507

508

509

510

511

512

513

514

515

516

517

518

519

520

521

522

523

524

525

526

527

528

529

530

531

532

533

534

535

536

537

538

539

using System;

using System.Collections.Generic;

using System.Linq;

using System.Windows;

using System.Windows.Controls;

using System.Windows.Controls.Primitives;

using System.Windows.Input;

using System.Windows.Media;

namespace AutoCompleteTextBox

{

public class AutoCompleteTextField : Control

{

#region Fields

private const string TextBoxPartName = "PART_TextBox";

private const string PopupTextBoxPartName = "PART_PopupTextBox";

private const string SuggestionPopupPartName = "PART_SuggestionPopup";

private const string SuggestionListBoxPartName = "PART_SuggestionListBox";

private TextBox _textBox;

private TextBox _popupTextBox;

private Popup _suggestionPopup;

private ListBox _suggestionListBox;

#endregion

#region Constructors

static AutoCompleteTextField()

{

DefaultStyleKeyProperty.OverrideMetadata(typeof(AutoCompleteTextField),

new FrameworkPropertyMetadata(typeof(AutoCompleteTextField)));

}

public AutoCompleteTextField()

{

Loaded += (sender, args) => RegisterEventHandlers();

Unloaded += (sender, args) => UnregisterEventHandlers();

}

#endregion

#region Base methods

public override void OnApplyTemplate()

{

base.OnApplyTemplate();

LoadControls();

var selectItemCommandBinding = new CommandBinding(SelectItemCommand, HandleSelectItemCommand);

CommandBindings.Add(selectItemCommandBinding);

}

protected override void OnMouseDown(MouseButtonEventArgs e)

{

base.OnMouseDown(e);

_textBox.Focus();

}

#endregion

#region Static commands

public static RoutedCommand SelectItemCommand = new RoutedCommand();

#endregion

#region Command handlers

private void HandleSelectItemCommand(object sender, ExecutedRoutedEventArgs e)

{

_suggestionListBox.SelectedItem = e.Parameter;

OnItemSelected();

}

#endregion

#region Helper methods

private void LoadControls()

{

_textBox = GetTemplateChild(TextBoxPartName) as TextBox;

_suggestionPopup = GetTemplateChild(SuggestionPopupPartName) as Popup;

_popupTextBox = GetTemplateChild(PopupTextBoxPartName) as TextBox;

_suggestionListBox = GetTemplateChild(SuggestionListBoxPartName) as ListBox;

}

private void RegisterEventHandlers()

{

PreviewKeyDown += OnPreviewKeyDown;

KeyDown += OnKeyDown;

_textBox.GotMouseCapture += OnTextBoxGotMouseCapture;

_textBox.TextChanged += OnTextBoxTextChanged;

_textBox.PreviewKeyDown += OnTextBoxPreviewKeyDown;

_popupTextBox.PreviewKeyDown += OnPopupTextBoxPreviewKeyDown;

_suggestionPopup.Opened += OnSuggestionPopupOpened;

_suggestionPopup.Closed += OnSuggestionPopupClosed;

}

private void UnregisterEventHandlers()

{

PreviewKeyDown -= OnPreviewKeyDown;

_textBox.GotMouseCapture -= OnTextBoxGotMouseCapture;

_textBox.TextChanged -= OnTextBoxTextChanged;

_textBox.PreviewKeyDown -= OnTextBoxPreviewKeyDown;

_popupTextBox.PreviewKeyDown -= OnPopupTextBoxPreviewKeyDown;

_suggestionPopup.Opened -= OnSuggestionPopupOpened;

_suggestionPopup.Closed -= OnSuggestionPopupClosed;

}

private string GetSelectedItem()

=> (_suggestionListBox.SelectedItem as AutoCompleteTextFieldMatchResult).Item;

private void OnItemSelected()

{

_textBox.Text = GetSelectedItem();

_textBox.CaretIndex = _textBox.Text.Length;

_textBox.Focus();

_suggestionPopup.IsOpen = false;

if (ItemSelectionCommand is null)

return;

if (ItemSelectionCommand.CanExecute(Text))

{

ItemSelectionCommand.Execute(Text);

ClosePopup();

}

private void ClosePopup()

{

_suggestionListBox.ItemsSource = null;

_suggestionPopup.IsOpen = false;

}

private void CreateSuggestion()

{

if (!IsLoaded)

return;

if (ItemsSource is null || ItemsSource.Count() == 0)

{

ClosePopup();

return;

}

var value = _textBox.Text.ToLower();

var filteredItems = new List<AutoCompleteTextFieldMatchResult>();

ItemsSource.ToList().ForEach(i =>

{

var matchInfo = IsMatch(value, i.ToLower());

if (matchInfo.Percentage >= MinimumMatchPercentage)

filteredItems.Add(matchInfo);

});

filteredItems = filteredItems.OrderByDescending(i => i.Percentage).Take(MaxSuggestionItems).ToList();

if (filteredItems.Count() == 1 && filteredItems.First().Item.Equals(_textBox.Text, StringComparison.OrdinalIgnoreCase))

{

ClosePopup();

return;

}

if (filteredItems.Count() > 0)

{

_suggestionListBox.ItemsSource = filteredItems;

_suggestionListBox.SelectedIndex = 0;

_suggestionPopup.IsOpen = true;

return;

}

ClosePopup();

}

private AutoCompleteTextFieldMatchResult IsMatch(string input, string suggestedItem)

{

var inputWords = input.Split(' ');

var totalMatchPercentage = inputWords.Length * 100;

var matchedWords = new List<AutoCompleteTextFieldMatchResult>();

foreach (var inputWord in inputWords)

{

var matchInfo = GetWordMatchInfo(inputWord, suggestedItem);

matchedWords.Add(matchInfo);

}

var matchedWordsPercentage = matchedWords.Sum(i => i.Percentage);

var percentage = (matchedWordsPercentage * 100) / totalMatchPercentage;

return new AutoCompleteTextFieldMatchResult { Percentage = percentage, Item = suggestedItem };

}

private AutoCompleteTextFieldMatchResult GetWordMatchInfo(string input, string suggestedItem)

{

var inputChars = input.ToCharArray();

var suggestedItemWords = suggestedItem.Split(' ');

var matchInfo = new AutoCompleteTextFieldMatchResult();

foreach (var word in suggestedItemWords)

{

if (input == word)

{

matchInfo.Percentage = 100;

return matchInfo;

}

if (word.Length < input.Length)

continue;

var wordChars = word.ToCharArray();

var matchCount = GetMatchCount(inputChars, wordChars);

var matchPercentage = matchCount * 100 / wordChars.Length;

if (matchCount > 1)

{

matchInfo.Percentage = matchPercentage;

return matchInfo;

}

return matchInfo;

}

private static int GetMatchCount(char[] input, char[] word)

{

if (input.Length == 0 || word.Length == 0)

return 0;

int counter;

for (var i = 0; i < word.Length; i++)

{

counter = 0;

if (word[i] != input[0])

continue;

for (int j = 0, k = i; j < input.Length; j++, k++)

{

if (k < word.Length && word[k] == input[j])

counter++;

}

if (counter == input.Length)

return counter;

}

return 0;

}

#endregion

#region Event handlers

private void OnPreviewKeyDown(object sender, KeyEventArgs e)

{

if (e.Key == Key.Enter && _suggestionPopup.IsOpen)

{

OnItemSelected();

return;

}

if (e.Key == Key.Escape)

{

ClosePopup();

return;

}

private void OnKeyDown(object sender, KeyEventArgs e)

{

if (SubmitByEnterCommand is null || e.Key != Key.Return)

return;

if (SubmitByEnterCommand.CanExecute(Text))

{

SubmitByEnterCommand.Execute(Text);

ClosePopup();

}

private void OnTextBoxPreviewKeyDown(object sender, KeyEventArgs e)

{

if (e.Key == Key.Space && e.KeyboardDevice.Modifiers == ModifierKeys.Control)

{

e.Handled = true;

CreateSuggestion();

return;

}

private void OnPopupTextBoxPreviewKeyDown(object sender, KeyEventArgs e)

{

if (e.Key == Key.Down && _suggestionListBox.Items.Count > 0)

{

_suggestionPopup.IsOpen = true;

if (_suggestionListBox.SelectedIndex < _suggestionListBox.Items.Count)

_suggestionListBox.SelectedIndex++;

return;

}

if (e.Key == Key.Up && _suggestionListBox.Items.Count > 0)

{

_suggestionPopup.IsOpen = true;

if (_suggestionListBox.SelectedIndex > 0)

_suggestionListBox.SelectedIndex--;

return;

}

private void OnTextBoxGotMouseCapture(object sender, MouseEventArgs e)

{

if (_suggestionPopup.IsOpen)

return;

if (_suggestionListBox.Items.Count > 0)

{

_suggestionPopup.IsOpen = true;

_popupTextBox.CaptureMouse();

}

private void OnTextBoxTextChanged(object sender, TextChangedEventArgs e)

{

CreateSuggestion();

}

private void OnSuggestionPopupOpened(object sender, EventArgs e)

{

_popupTextBox.CaretIndex = _popupTextBox.Text.Length;

_popupTextBox.Focus();

}

private void OnSuggestionPopupClosed(object sender, EventArgs e)

{

_textBox.CaretIndex = _popupTextBox.Text.Length;

_textBox.Focus();

}

#endregion

#region DependencyProperty : ItemsSource

public IEnumerable<string> ItemsSource

{

get { return (IEnumerable<string>)GetValue(ItemsSourceProperty); }

set { SetValue(ItemsSourceProperty, value); }

}

public static readonly DependencyProperty ItemsSourceProperty =

DependencyProperty.Register(nameof(ItemsSource),

typeof(IEnumerable<string>), typeof(AutoCompleteTextField),

new UIPropertyMetadata(default, OnItemsSourceChanged));

private static void OnItemsSourceChanged(DependencyObject d, DependencyPropertyChangedEventArgs e)

{

if (d is AutoCompleteTextField autoCompleteTextField)

autoCompleteTextField.CreateSuggestion();

}

#endregion

#region DependencyProperty : MinimumMatchPercentage

public int MinimumMatchPercentage

{

get { return (int)GetValue(MinimumMatchPercentageProperty); }

set { SetValue(MinimumMatchPercentageProperty, value); }

}

public static readonly DependencyProperty MinimumMatchPercentageProperty =

DependencyProperty.Register(nameof(MinimumMatchPercentage),

typeof(int), typeof(AutoCompleteTextField),

new UIPropertyMetadata(default));

#endregion

#region DependencyProperty : MaxSuggestionItems

public int MaxSuggestionItems

{

get { return (int)GetValue(MaxSuggestionItemsProperty); }

set { SetValue(MaxSuggestionItemsProperty, value); }

}

public static readonly DependencyProperty MaxSuggestionItemsProperty =

DependencyProperty.Register(nameof(MaxSuggestionItems),

typeof(int), typeof(AutoCompleteTextField),

new UIPropertyMetadata(default));

#endregion

#region DependencyProperty : Text

public string Text

{

get { return (string)GetValue(TextProperty); }

set { SetValue(TextProperty, value); }

}

public static readonly DependencyProperty TextProperty =

DependencyProperty.Register(nameof(Text),

typeof(string), typeof(AutoCompleteTextField),

new FrameworkPropertyMetadata(default, FrameworkPropertyMetadataOptions.BindsTwoWayByDefault));

#endregion

#region DependencyProperty : Hint

public object Hint

{

get { return GetValue(HintProperty); }

set { SetValue(HintProperty, value); }

}

public static readonly DependencyProperty HintProperty =

DependencyProperty.Register(nameof(Hint),

typeof(object), typeof(AutoCompleteTextField),

new UIPropertyMetadata(default));

#endregion

#region DependencyProperty : CornerRadius

public CornerRadius CornerRadius

{

get { return (CornerRadius)GetValue(CornerRadiusProperty); }

set { SetValue(CornerRadiusProperty, value); }

}

public static readonly DependencyProperty CornerRadiusProperty =

DependencyProperty.Register(nameof(CornerRadius),

typeof(CornerRadius), typeof(AutoCompleteTextField),

new UIPropertyMetadata(default));

#endregion

#region DependencyProperty : RemoveItemCommand

public ICommand RemoveItemCommand

{

get { return (ICommand)GetValue(RemoveItemCommandProperty); }

set { SetValue(RemoveItemCommandProperty, value); }

}

public static readonly DependencyProperty RemoveItemCommandProperty =

DependencyProperty.Register(nameof(RemoveItemCommand),

typeof(ICommand), typeof(AutoCompleteTextField),

new UIPropertyMetadata(default));

#endregion

#region DependencyProperty : SubmitByEnterCommand

public ICommand SubmitByEnterCommand

{

get { return (ICommand)GetValue(SubmitByEnterCommandProperty); }

set { SetValue(SubmitByEnterCommandProperty, value); }

}

public static readonly DependencyProperty SubmitByEnterCommandProperty =

DependencyProperty.Register(nameof(SubmitByEnterCommand),

typeof(ICommand), typeof(AutoCompleteTextField),

new UIPropertyMetadata(default));

#endregion

#region DependencyProperty : ItemSelectionCommand

public ICommand ItemSelectionCommand

{

get { return (ICommand)GetValue(ItemSelectionCommandProperty); }

set { SetValue(ItemSelectionCommandProperty, value); }

}

public static readonly DependencyProperty ItemSelectionCommandProperty =

DependencyProperty.Register(nameof(ItemSelectionCommand),

typeof(ICommand), typeof(AutoCompleteTextField),

new UIPropertyMetadata(default));

#endregion

#region DependencyProperty : ListBoxSelectedItemBackground

public Brush ListBoxSelectedItemBackground

{

get { return (Brush)GetValue(ListBoxSelectedItemBackgroundProperty); }

set { SetValue(ListBoxSelectedItemBackgroundProperty, value); }

}

public static readonly DependencyProperty ListBoxSelectedItemBackgroundProperty =

DependencyProperty.Register(nameof(ListBoxSelectedItemBackground),

typeof(Brush), typeof(AutoCompleteTextField),

new UIPropertyMetadata(default));

#endregion

#region DependencyProperty : ListBoxItemMouseOverBackground

public Brush ListBoxItemMouseOverBackground

{

get { return (Brush)GetValue(ListBoxItemMouseOverBackgroundProperty); }

set { SetValue(ListBoxItemMouseOverBackgroundProperty, value); }

}

public static readonly DependencyProperty ListBoxItemMouseOverBackgroundProperty =

DependencyProperty.Register(nameof(ListBoxItemMouseOverBackground),

typeof(Brush), typeof(AutoCompleteTextField),

new UIPropertyMetadata(default));

#endregion

#region DependencyProperty : SuggestionListMaxHeight

public double SuggestionListMaxHeight

{

get { return (double)GetValue(SuggestionListMaxHeightProperty); }

set { SetValue(SuggestionListMaxHeightProperty, value); }

}

public static readonly DependencyProperty SuggestionListMaxHeightProperty =

DependencyProperty.Register(nameof(SuggestionListMaxHeight),

typeof(double), typeof(AutoCompleteTextField),

new UIPropertyMetadata(default));

#endregion

}

بعد از آن یک کلاس جدید با نام AutoCompleteTextFieldMatchResult.cs ایجاد کرده و محتوای آن را به شکل زیر تغییر دهید.

namespace AutoCompleteTextBox
{
    internal class AutoCompleteTextFieldMatchResult
    {
        public string Item { get; set; }
        public int Percentage { get; set; }
    }
}

namespace AutoCompleteTextBox

{

internal class AutoCompleteTextFieldMatchResult

{

public string Item { get; set; }

public int Percentage { get; set; }

}

این کلاس برای برای ایجاد لیست پیشنهادی برای کنترل سفارشی ما استفاده می شود. برای ظاهر کنترل هم ابتدا یک Converter مانند نمونه زیر ایجاد کنید.

using System;
using System.Globalization;
using System.Windows;
using System.Windows.Data;

namespace AutoCompleteTextBox.Converters
{
    internal class AutoCompleteTextFieldPaddingToPopupMarginConverter : IValueConverter
    {
        public object Convert(object value, Type targetType, object parameter, CultureInfo culture)
        {
            var padding = (Thickness)value;
            return new Thickness(padding.Left, 0, padding.Right, 0);
        }

        public object ConvertBack(object value, Type targetType, object parameter, CultureInfo culture)
            => Binding.DoNothing;
    }
}

using System;

using System.Globalization;

using System.Windows;

using System.Windows.Data;

namespace AutoCompleteTextBox.Converters

{

internal class AutoCompleteTextFieldPaddingToPopupMarginConverter : IValueConverter

{

public object Convert(object value, Type targetType, object parameter, CultureInfo culture)

{

var padding = (Thickness)value;

return new Thickness(padding.Left, 0, padding.Right, 0);

}

public object ConvertBack(object value, Type targetType, object parameter, CultureInfo culture)

=> Binding.DoNothing;

}

این تبدیل کننده برای تنظیم مقدار Margin فیلد موجود در داخل Popup استفاده می شود. حال باید ظاهر کنترل را درست کنیم. برای اینکار فایل xaml مربوط به کنترل را باز کنید و محتوای آن را مانند نمونه زیر تغییر دهید.

<ResourceDictionary
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:po="http://schemas.microsoft.com/winfx/2006/xaml/presentation/options"
    xmlns:local="clr-namespace:AutoCompleteTextBox"
    xmlns:system="clr-namespace:System;assembly=System.Runtime"
    xmlns:converters="clr-namespace:AutoCompleteTextBox.Converters">

    <ResourceDictionary.MergedDictionaries>
        <ResourceDictionary>
            <BooleanToVisibilityConverter x:Key="BooleanToVisibilityConverter" />
            <converters:AutoCompleteTextFieldPaddingToPopupMarginConverter x:Key="AutoCompleteTextFieldPaddingToPopupMarginConverter" />
        </ResourceDictionary>
    </ResourceDictionary.MergedDictionaries>

    <system:Double x:Key="IconSize">16</system:Double>

    <DropShadowEffect
        x:Key="AutoCompleteTextFieldPopupBorderShadow"
        BlurRadius="8"
        ShadowDepth="2.25"
        Opacity=".42"
        RenderingBias="Performance"
        po:Freeze="True"/>

    <DataTemplate x:Key="AutoCompleteTextFieldRemoveButtonContentTemplate">
        <Viewbox>
            <Canvas Width="2048" Height="2048">
                <Path
                    Fill="{Binding Foreground, RelativeSource={RelativeSource FindAncestor, AncestorType={x:Type Button}}}"
                    Data="M1718.1,1534.2c18.9,18.9,18.9,49.6,0,68.5l-115.4,115.4c-18.9,18.9-49.6,18.9-68.5,0L1024,1207.8l-510.2,510.2c-18.9,18.9-49.6,18.9-68.5,0l-115.4-115.4c-18.9-18.9-18.9-49.6,0-68.5L840.2,1024L329.9,513.8c-18.9-18.9-18.9-49.6,0-68.5l115.4-115.4c18.9-18.9,49.6-18.9,68.5,0L1024,840.2l510.2-510.2c18.9-18.9,49.6-18.9,68.5,0l115.4,115.4c18.9,18.9,18.9,49.6,0,68.5L1207.8,1024L1718.1,1534.2z"/>
            </Canvas>
        </Viewbox>
    </DataTemplate>

    <Style x:Key="AutoCompleteTextFieldRemoveButtonStyle" TargetType="{x:Type Button}">
        <Setter Property="UseLayoutRounding" Value="True"/>
        <Setter Property="OverridesDefaultStyle" Value="True"/>
        <Setter Property="VerticalContentAlignment" Value="Center"/>
        <Setter Property="Cursor" Value="Hand" />
        <Setter Property="Background" Value="Transparent" />
        <Setter Property="BorderBrush" Value="Transparent" />
        <Setter Property="BorderThickness" Value="0" />
        <Setter Property="Focusable" Value="False" />
        <Setter Property="Padding" Value="8,0" />
        <Setter Property="Margin" Value="0,0,4,0" />
        <Setter Property="Template">
            <Setter.Value>
                <ControlTemplate TargetType="{x:Type Button}">
                    <Border
                        x:Name="ContainerBorder"
                        UseLayoutRounding="True"
                        Background="{TemplateBinding Background}"
                        BorderBrush="{TemplateBinding BorderBrush}"
                        BorderThickness="{TemplateBinding BorderThickness}">
                        <ContentPresenter
                            x:Name="ContentPresenter"
                            Content="{TemplateBinding Content}"
                            ContentTemplate="{TemplateBinding ContentTemplate}"
                            HorizontalAlignment="{TemplateBinding HorizontalContentAlignment}"
                            VerticalAlignment="{TemplateBinding VerticalContentAlignment}"
                            Margin="{TemplateBinding Padding}"
                            RenderOptions.ClearTypeHint="Auto"
                            TextOptions.TextRenderingMode="Auto"
                            TextOptions.TextFormattingMode="Display"
                            Opacity="0.64"/>
                    </Border>
                    <ControlTemplate.Triggers>
                        <Trigger Property="IsEnabled" Value="False">
                            <Setter Property="Opacity" TargetName="ContainerBorder" Value="0.42"/>
                        </Trigger>
                        <Trigger Property="IsMouseOver" Value="True">
                            <Setter Property="Opacity" TargetName="ContentPresenter" Value="1"/>
                        </Trigger>
                    </ControlTemplate.Triggers>
                </ControlTemplate>
            </Setter.Value>
        </Setter>
    </Style>

    <Style x:Key="AutoCompleteTextFieldTextBoxStyle" TargetType="{x:Type TextBox}">
        <Setter Property="Background" Value="Transparent" />
        <Setter Property="BorderBrush" Value="Transparent" />
        <Setter Property="BorderThickness" Value="0" />
        <Setter Property="VerticalContentAlignment" Value="Center" />
        <Setter Property="CaretBrush" Value="{Binding RelativeSource={RelativeSource Mode=Self}, Path=Foreground}" />
        <Setter Property="Template">
            <Setter.Value>
                <ControlTemplate TargetType="{x:Type TextBox}">
                    <Border
                        CornerRadius="{Binding RelativeSource={RelativeSource Mode=FindAncestor, AncestorType=local:AutoCompleteTextField}, Path=CornerRadius}"
                        BorderThickness="{TemplateBinding BorderThickness}"
                        BorderBrush="{TemplateBinding BorderBrush}"
                        Background="{TemplateBinding Background}">
                        <ScrollViewer
                            x:Name="PART_ContentHost"
                            Margin="{TemplateBinding Padding}"/>
                    </Border>
                </ControlTemplate>
            </Setter.Value>
        </Setter>
    </Style>

    <Style x:Key="AutoCompleteTextFieldPopupStyle" TargetType="{x:Type Popup}">
        <Setter Property="StaysOpen" Value="False" />
        <Setter Property="AllowsTransparency" Value="True" />
        <Setter Property="PopupAnimation" Value="Fade" />
        <Setter Property="Placement" Value="Relative" />
    </Style>

    <Style x:Key="AutoCompleteTextFieldListBoxItemStyle" TargetType="{x:Type ListBoxItem}">
        <Setter Property="UseLayoutRounding" Value="True" />
        <Setter Property="OverridesDefaultStyle" Value="True" />
        <Setter Property="VerticalAlignment" Value="Center" />
        <Setter Property="VerticalContentAlignment" Value="Center" />
        <Setter Property="Padding" Value="6" />
        <Setter Property="Height" Value="Auto" />
        <Setter Property="MinHeight" Value="38" />
        <Setter Property="FocusVisualStyle" Value="{x:Null}" />
        <Setter Property="Template">
            <Setter.Value>
                <ControlTemplate TargetType="{x:Type ListBoxItem}">
                    <Border
                        BorderThickness="{TemplateBinding BorderThickness}"
                        BorderBrush="{TemplateBinding BorderBrush}"
                        Background="{TemplateBinding Background}">

                        <Border.InputBindings>
                            <MouseBinding
                                Gesture="LeftClick"
                                CommandParameter="{Binding}"
                                Command="{x:Static local:AutoCompleteTextField.SelectItemCommand}" />
                        </Border.InputBindings>

                        <Grid VerticalAlignment="{TemplateBinding VerticalContentAlignment}">
                            <Grid.ColumnDefinitions>
                                <ColumnDefinition Width="Auto"/>
                                <ColumnDefinition Width="*"/>
                                <ColumnDefinition Width="Auto"/>
                            </Grid.ColumnDefinitions>
                            <Viewbox
                                Grid.Column="0"
                                Margin="12,0"
                                Opacity="0.64"
                                Width="{StaticResource IconSize}"
                                Height="{StaticResource IconSize}">
                                <Canvas Width="24" Height="24">
                                    <Path
                                        Fill="{TemplateBinding Foreground}"
                                        Data="M12,20A8,8 0 0,0 20,12A8,8 0 0,0 12,4A8,8 0 0,0 4,12A8,8 0 0,0 12,20M12,2A10,10 0 0,1 22,12A10,10 0 0,1 12,22C6.47,22 2,17.5 2,12A10,10 0 0,1 12,2M12.5,7V12.25L17,14.92L16.25,16.15L11,13V7H12.5Z" />
                                </Canvas>
                            </Viewbox>

                            <TextBlock
                                Grid.Column="1"
                                Margin="{TemplateBinding Padding}"
                                Text="{Binding Item}"
                                ToolTip="{Binding Item}"
                                VerticalAlignment="Center"
                                TextTrimming="WordEllipsis"/>

                            <Button
                                x:Name="RemoveButton"
                                Grid.Column="2"
                                Visibility="Collapsed"
                                CommandParameter="{Binding Item}"
                                Command="{Binding RelativeSource={RelativeSource Mode=FindAncestor, AncestorType=local:AutoCompleteTextField}, Path=RemoveItemCommand}"
                                Background="{TemplateBinding Background}"
                                Foreground="{TemplateBinding Foreground}"
                                Style="{StaticResource AutoCompleteTextFieldRemoveButtonStyle}">
                                <Button.ContentTemplate>
                                    <DataTemplate>
                                        <ContentControl
                                            ContentTemplate="{StaticResource AutoCompleteTextFieldRemoveButtonContentTemplate}"
                                            Width="{StaticResource IconSize}"
                                            Height="{StaticResource IconSize}"/>
                                    </DataTemplate>
                                </Button.ContentTemplate>
                            </Button>
                        </Grid>
                    </Border>
                    <ControlTemplate.Triggers>
                        <Trigger Property="IsSelected" Value="True">
                            <Setter
                                Property="Background"
                                Value="{Binding RelativeSource={RelativeSource Mode=FindAncestor, AncestorType={x:Type local:AutoCompleteTextField}}, Path=ListBoxSelectedItemBackground}" />
                        </Trigger>
                        <Trigger Property="IsMouseOver" Value="True">
                            <Setter
                                Property="Background"
                                Value="{Binding RelativeSource={RelativeSource Mode=FindAncestor, AncestorType={x:Type local:AutoCompleteTextField}}, Path=ListBoxItemMouseOverBackground}" />
                            <Setter TargetName="RemoveButton" Property="Visibility" Value="Visible" />
                        </Trigger>
                    </ControlTemplate.Triggers>
                </ControlTemplate>
            </Setter.Value>
        </Setter>
    </Style>

    <Style x:Key="AutoCompleteTextFieldListBoxStyle" TargetType="{x:Type ListBox}">
        <Setter Property="Background" Value="Transparent" />
        <Setter Property="BorderThickness" Value="0" />
        <Setter Property="Padding" Value="0" />
        <Setter Property="Margin" Value="0,12" />
        <Setter Property="ScrollViewer.HorizontalScrollBarVisibility" Value="Disabled" />
        <Setter Property="ScrollViewer.VerticalScrollBarVisibility" Value="Auto" />
        <Setter Property="FocusVisualStyle" Value="{x:Null}" />
        <Style.Resources>
            <Style TargetType="Border">
                <Setter
                    Property="CornerRadius"
                    Value="{Binding RelativeSource={RelativeSource Mode=FindAncestor, AncestorType={x:Type local:AutoCompleteTextField}}, Path=CornerRadius}"/>
            </Style>
        </Style.Resources>
    </Style>

    <Style TargetType="{x:Type local:AutoCompleteTextField}">
        <Setter Property="UseLayoutRounding" Value="True" />
        <Setter Property="MinimumMatchPercentage" Value="50" />
        <Setter Property="MaxSuggestionItems" Value="5" />
        <Setter Property="VerticalContentAlignment" Value="Center" />
        <Setter Property="Background" Value="#f6f6f6" />
        <Setter Property="ListBoxSelectedItemBackground" Value="#f0f0f0" />
        <Setter Property="ListBoxItemMouseOverBackground" Value="#e0e0e0" />
        <Setter Property="FontSize" Value="14" />
        <Setter Property="CornerRadius" Value="6" />
        <Setter Property="Padding" Value="6,0" />
        <Setter Property="Height" Value="Auto" />
        <Setter Property="MinHeight" Value="38" />
        <Setter Property="Cursor" Value="IBeam" />
        <Setter Property="Focusable" Value="False" />
        <Setter Property="Template">
            <Setter.Value>
                <ControlTemplate TargetType="{x:Type local:AutoCompleteTextField}">
                    <Border
                        x:Name="PART_ContainerBorder"
                        CornerRadius="{TemplateBinding CornerRadius}"
                        Background="{TemplateBinding Background}"
                        BorderBrush="{TemplateBinding BorderBrush}"
                        BorderThickness="{TemplateBinding BorderThickness}">
                        <Grid
                            Margin="{TemplateBinding Padding}"
                            VerticalAlignment="{TemplateBinding VerticalContentAlignment}">
                            <ContentPresenter
                                x:Name="PART_HintPresenter"
                                Cursor="IBeam"
                                Opacity="0.64"
                                TextBlock.TextAlignment="{Binding ElementName=PART_TextBox, Path=TextAlignment}"
                                Visibility="{Binding ElementName=PART_TextBox, Path=Text.IsEmpty, Converter={StaticResource BooleanToVisibilityConverter}}"
                                Content="{TemplateBinding Hint}" />
                            <TextBox
                                x:Name="PART_TextBox"
                                Foreground="{TemplateBinding Foreground}"
                                Style="{StaticResource AutoCompleteTextFieldTextBoxStyle}"
                                Text="{Binding RelativeSource={RelativeSource Mode=TemplatedParent}, Path=Text, Mode=TwoWay, UpdateSourceTrigger=PropertyChanged}" />
                            <Popup
                                x:Name="PART_SuggestionPopup"
                                PlacementTarget="{Binding ElementName=PART_ContainerBorder}"
                                Style="{StaticResource AutoCompleteTextFieldPopupStyle}">
                                <Border
                                    Margin="8"
                                    Effect="{StaticResource AutoCompleteTextFieldPopupBorderShadow}"
                                    CornerRadius="{TemplateBinding CornerRadius}"
                                    Background="{TemplateBinding Background}"
                                    BorderBrush="{TemplateBinding BorderBrush}"
                                    BorderThickness="{TemplateBinding BorderThickness}">
                                    <StackPanel
                                        Width="{Binding RelativeSource={RelativeSource Mode=FindAncestor, AncestorType={x:Type local:AutoCompleteTextField}}, Path=ActualWidth}">
                                        <Grid Margin="{Binding RelativeSource={RelativeSource Mode=TemplatedParent}, Path=Padding, Converter={StaticResource AutoCompleteTextFieldPaddingToPopupMarginConverter}}">
                                            <ContentPresenter
                                                Cursor="IBeam"
                                                Opacity="0.64"
                                                VerticalAlignment="Center"
                                                Margin="{Binding ElementName=PART_HintPresenter, Path=Margin}"
                                                TextBlock.TextAlignment="{Binding ElementName=PART_TextBox, Path=TextAlignment}"
                                                Visibility="{Binding ElementName=PART_TextBox, Path=Text.IsEmpty, Converter={StaticResource BooleanToVisibilityConverter}}"
                                                Content="{TemplateBinding Hint}" />

                                            <TextBox
                                                x:Name="PART_PopupTextBox"
                                                Margin="{Binding ElementName=PART_TextBox, Path=Margin}"
                                                Foreground="{TemplateBinding Foreground}"
                                                Height="{Binding RelativeSource={RelativeSource Mode=FindAncestor, AncestorType={x:Type local:AutoCompleteTextField}}, Path=ActualHeight}"
                                                Style="{StaticResource AutoCompleteTextFieldTextBoxStyle}"
                                                Text="{Binding ElementName=PART_TextBox, Path=Text, UpdateSourceTrigger=PropertyChanged, Mode=TwoWay}" />
                                        </Grid>
                                        <Separator
                                            BorderBrush="{TemplateBinding Foreground}"
                                            BorderThickness="2"
                                            Opacity="0.2"
                                            Margin="12,0"/>
                                        <ListBox
                                            x:Name="PART_SuggestionListBox"
                                            Foreground="{TemplateBinding Foreground}"
                                            Background="{TemplateBinding Background}"
                                            MaxHeight="{TemplateBinding SuggestionListMaxHeight}"
                                            ItemContainerStyle="{StaticResource AutoCompleteTextFieldListBoxItemStyle}"
                                            Style="{StaticResource AutoCompleteTextFieldListBoxStyle}" />
                                    </StackPanel>
                                </Border>
                            </Popup>
                        </Grid>
                    </Border>
                </ControlTemplate>
            </Setter.Value>
        </Setter>
    </Style>
</ResourceDictionary>

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

256

257

258

259

260

261

262

263

264

265

266

267

268

269

270

271

272

273

274

275

276

277

278

279

280

281

282

283

284

285

286

287

288

289

290

291

292

293

294

295

296

297

298

299

300

301

302

303

304

305

306

307

308

<ResourceDictionary

xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"

xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"

xmlns:po="http://schemas.microsoft.com/winfx/2006/xaml/presentation/options"

xmlns:local="clr-namespace:AutoCompleteTextBox"

xmlns:system="clr-namespace:System;assembly=System.Runtime"

xmlns:converters="clr-namespace:AutoCompleteTextBox.Converters">

<ResourceDictionary.MergedDictionaries>

<converters:AutoCompleteTextFieldPaddingToPopupMarginConverter x:Key="AutoCompleteTextFieldPaddingToPopupMarginConverter" />

</ResourceDictionary>

</ResourceDictionary.MergedDictionaries>

<system:Double x:Key="IconSize">16</system:Double>

<DropShadowEffect

x:Key="AutoCompleteTextFieldPopupBorderShadow"

BlurRadius="8"

ShadowDepth="2.25"

Opacity=".42"

RenderingBias="Performance"

po:Freeze="True"/>

<Path

Fill="{Binding Foreground, RelativeSource={RelativeSource FindAncestor, AncestorType={x:Type Button}}}"

Data="M1718.1,1534.2c18.9,18.9,18.9,49.6,0,68.5l-115.4,115.4c-18.9,18.9-49.6,18.9-68.5,0L1024,1207.8l-510.2,510.2c-18.9,18.9-49.6,18.9-68.5,0l-115.4-115.4c-18.9-18.9-18.9-49.6,0-68.5L840.2,1024L329.9,513.8c-18.9-18.9-18.9-49.6,0-68.5l115.4-115.4c18.9-18.9,49.6-18.9,68.5,0L1024,840.2l510.2-510.2c18.9-18.9,49.6-18.9,68.5,0l115.4,115.4c18.9,18.9,18.9,49.6,0,68.5L1207.8,1024L1718.1,1534.2z"/>

</Canvas>

</Viewbox>

</DataTemplate>

<Setter.Value>

<Border

x:Name="ContainerBorder"

UseLayoutRounding="True"

Background="{TemplateBinding Background}"

BorderBrush="{TemplateBinding BorderBrush}"

BorderThickness="{TemplateBinding BorderThickness}">

<ContentPresenter

x:Name="ContentPresenter"

Content="{TemplateBinding Content}"

ContentTemplate="{TemplateBinding ContentTemplate}"

HorizontalAlignment="{TemplateBinding HorizontalContentAlignment}"

VerticalAlignment="{TemplateBinding VerticalContentAlignment}"

Margin="{TemplateBinding Padding}"

RenderOptions.ClearTypeHint="Auto"

TextOptions.TextRenderingMode="Auto"

TextOptions.TextFormattingMode="Display"

Opacity="0.64"/>

</Border>

<ControlTemplate.Triggers>

</Trigger>

</Trigger>

</ControlTemplate.Triggers>

</ControlTemplate>

</Setter.Value>

</Setter>

</Style>

<Setter.Value>

<Border

CornerRadius="{Binding RelativeSource={RelativeSource Mode=FindAncestor, AncestorType=local:AutoCompleteTextField}, Path=CornerRadius}"

BorderThickness="{TemplateBinding BorderThickness}"

BorderBrush="{TemplateBinding BorderBrush}"

Background="{TemplateBinding Background}">

<ScrollViewer

x:Name="PART_ContentHost"

Margin="{TemplateBinding Padding}"/>

</Border>

</ControlTemplate>

</Setter.Value>

</Setter>

</Style>

</Style>

<Setter.Value>

<Border

BorderThickness="{TemplateBinding BorderThickness}"

BorderBrush="{TemplateBinding BorderBrush}"

Background="{TemplateBinding Background}">

<Border.InputBindings>

<MouseBinding

Gesture="LeftClick"

CommandParameter="{Binding}"

Command="{x:Static local:AutoCompleteTextField.SelectItemCommand}" />

</Border.InputBindings>

<Grid.ColumnDefinitions>

</Grid.ColumnDefinitions>

<Viewbox

Grid.Column="0"

Margin="12,0"

Opacity="0.64"

Width="{StaticResource IconSize}"

Height="{StaticResource IconSize}">

<Path

Fill="{TemplateBinding Foreground}"

Data="M12,20A8,8 0 0,0 20,12A8,8 0 0,0 12,4A8,8 0 0,0 4,12A8,8 0 0,0 12,20M12,2A10,10 0 0,1 22,12A10,10 0 0,1 12,22C6.47,22 2,17.5 2,12A10,10 0 0,1 12,2M12.5,7V12.25L17,14.92L16.25,16.15L11,13V7H12.5Z" />

</Canvas>

</Viewbox>

<TextBlock

Grid.Column="1"

Margin="{TemplateBinding Padding}"

Text="{Binding Item}"

ToolTip="{Binding Item}"

VerticalAlignment="Center"

TextTrimming="WordEllipsis"/>

<Button

x:Name="RemoveButton"

Grid.Column="2"

Visibility="Collapsed"

CommandParameter="{Binding Item}"

Command="{Binding RelativeSource={RelativeSource Mode=FindAncestor, AncestorType=local:AutoCompleteTextField}, Path=RemoveItemCommand}"

Background="{TemplateBinding Background}"

Foreground="{TemplateBinding Foreground}"

Style="{StaticResource AutoCompleteTextFieldRemoveButtonStyle}">

<Button.ContentTemplate>

<ContentControl

ContentTemplate="{StaticResource AutoCompleteTextFieldRemoveButtonContentTemplate}"

Width="{StaticResource IconSize}"

Height="{StaticResource IconSize}"/>

</DataTemplate>

</Button.ContentTemplate>

</Button>

</Grid>

</Border>

<ControlTemplate.Triggers>

<Setter

Property="Background"

Value="{Binding RelativeSource={RelativeSource Mode=FindAncestor, AncestorType={x:Type local:AutoCompleteTextField}}, Path=ListBoxSelectedItemBackground}" />

</Trigger>

<Setter

Property="Background"

Value="{Binding RelativeSource={RelativeSource Mode=FindAncestor, AncestorType={x:Type local:AutoCompleteTextField}}, Path=ListBoxItemMouseOverBackground}" />

</Trigger>

</ControlTemplate.Triggers>

</ControlTemplate>

</Setter.Value>

</Setter>

</Style>

<Style.Resources>

<Setter

Property="CornerRadius"

Value="{Binding RelativeSource={RelativeSource Mode=FindAncestor, AncestorType={x:Type local:AutoCompleteTextField}}, Path=CornerRadius}"/>

</Style>

</Style.Resources>

</Style>

<Setter.Value>

<Border

x:Name="PART_ContainerBorder"

CornerRadius="{TemplateBinding CornerRadius}"

Background="{TemplateBinding Background}"

BorderBrush="{TemplateBinding BorderBrush}"

BorderThickness="{TemplateBinding BorderThickness}">

<Grid

Margin="{TemplateBinding Padding}"

VerticalAlignment="{TemplateBinding VerticalContentAlignment}">

<ContentPresenter

x:Name="PART_HintPresenter"

Cursor="IBeam"

Opacity="0.64"

TextBlock.TextAlignment="{Binding ElementName=PART_TextBox, Path=TextAlignment}"

Visibility="{Binding ElementName=PART_TextBox, Path=Text.IsEmpty, Converter={StaticResource BooleanToVisibilityConverter}}"

Content="{TemplateBinding Hint}" />

<TextBox

x:Name="PART_TextBox"

Foreground="{TemplateBinding Foreground}"

Style="{StaticResource AutoCompleteTextFieldTextBoxStyle}"

Text="{Binding RelativeSource={RelativeSource Mode=TemplatedParent}, Path=Text, Mode=TwoWay, UpdateSourceTrigger=PropertyChanged}" />

<Popup

x:Name="PART_SuggestionPopup"

PlacementTarget="{Binding ElementName=PART_ContainerBorder}"

Style="{StaticResource AutoCompleteTextFieldPopupStyle}">

<Border

Margin="8"

Effect="{StaticResource AutoCompleteTextFieldPopupBorderShadow}"

CornerRadius="{TemplateBinding CornerRadius}"

Background="{TemplateBinding Background}"

BorderBrush="{TemplateBinding BorderBrush}"

BorderThickness="{TemplateBinding BorderThickness}">

<StackPanel

Width="{Binding RelativeSource={RelativeSource Mode=FindAncestor, AncestorType={x:Type local:AutoCompleteTextField}}, Path=ActualWidth}">

<ContentPresenter

Cursor="IBeam"

Opacity="0.64"

VerticalAlignment="Center"

Margin="{Binding ElementName=PART_HintPresenter, Path=Margin}"

TextBlock.TextAlignment="{Binding ElementName=PART_TextBox, Path=TextAlignment}"

Visibility="{Binding ElementName=PART_TextBox, Path=Text.IsEmpty, Converter={StaticResource BooleanToVisibilityConverter}}"

Content="{TemplateBinding Hint}" />

<TextBox

x:Name="PART_PopupTextBox"

Margin="{Binding ElementName=PART_TextBox, Path=Margin}"

Foreground="{TemplateBinding Foreground}"

Height="{Binding RelativeSource={RelativeSource Mode=FindAncestor, AncestorType={x:Type local:AutoCompleteTextField}}, Path=ActualHeight}"

Style="{StaticResource AutoCompleteTextFieldTextBoxStyle}"

Text="{Binding ElementName=PART_TextBox, Path=Text, UpdateSourceTrigger=PropertyChanged, Mode=TwoWay}" />

</Grid>

<Separator

BorderBrush="{TemplateBinding Foreground}"

BorderThickness="2"

Opacity="0.2"

Margin="12,0"/>

<ListBox

x:Name="PART_SuggestionListBox"

Foreground="{TemplateBinding Foreground}"

Background="{TemplateBinding Background}"

MaxHeight="{TemplateBinding SuggestionListMaxHeight}"

ItemContainerStyle="{StaticResource AutoCompleteTextFieldListBoxItemStyle}"

Style="{StaticResource AutoCompleteTextFieldListBoxStyle}" />

</StackPanel>

</Border>

</Popup>

</Grid>

</Border>

</ControlTemplate>

</Setter.Value>

</Setter>

</Style>

</ResourceDictionary>

در ادامه بخش های مختلف کد بالا را بررسی میکنیم. تکه کد زیر مربوط به تعریف Converter ها است که BooleanToVisibilityConverter به صورت پیشفرض (Built-in) در WPF وجود دارد و AutoCompleteTextFieldPaddingToPopupMarginConverter هم تبدیل کننده ای است که خودمان ایجاد کرده ایم.

<ResourceDictionary.MergedDictionaries>
        <ResourceDictionary>
            <BooleanToVisibilityConverter x:Key="BooleanToVisibilityConverter" />
            <converters:AutoCompleteTextFieldPaddingToPopupMarginConverter x:Key="AutoCompleteTextFieldPaddingToPopupMarginConverter" />
        </ResourceDictionary>
    </ResourceDictionary.MergedDictionaries>

<ResourceDictionary.MergedDictionaries>

<converters:AutoCompleteTextFieldPaddingToPopupMarginConverter x:Key="AutoCompleteTextFieldPaddingToPopupMarginConverter" />

</ResourceDictionary>

</ResourceDictionary.MergedDictionaries>

تکه کد زیر مربوط به اندازه آیکون های حذف و تاریخچه است که برای هر یک از آیتم های پیشنهادی نمایش داده می شوند.

<system:Double x:Key="IconSize">16</system:Double>

1	<system:Double x:Key="IconSize">16</system:Double>

تکه کد زیر مربوط به افکت سایه Popup است.

<DropShadowEffect
        x:Key="AutoCompleteTextFieldPopupBorderShadow"
        BlurRadius="8"
        ShadowDepth="2.25"
        Opacity=".42"
        RenderingBias="Performance"
        po:Freeze="True"/>

<DropShadowEffect

x:Key="AutoCompleteTextFieldPopupBorderShadow"

BlurRadius="8"

ShadowDepth="2.25"

Opacity=".42"

RenderingBias="Performance"

po:Freeze="True"/>

تکه کد زیر قالب مربوط به آیکون حذف آیتم از لیست پیشنهادی است.

<DataTemplate x:Key="AutoCompleteTextFieldRemoveButtonContentTemplate">
        <Viewbox>
            <Canvas Width="2048" Height="2048">
                <Path
                    Fill="{Binding Foreground, RelativeSource={RelativeSource FindAncestor, AncestorType={x:Type Button}}}"
                    Data="M1718.1,1534.2c18.9,18.9,18.9,49.6,0,68.5l-115.4,115.4c-18.9,18.9-49.6,18.9-68.5,0L1024,1207.8l-510.2,510.2c-18.9,18.9-49.6,18.9-68.5,0l-115.4-115.4c-18.9-18.9-18.9-49.6,0-68.5L840.2,1024L329.9,513.8c-18.9-18.9-18.9-49.6,0-68.5l115.4-115.4c18.9-18.9,49.6-18.9,68.5,0L1024,840.2l510.2-510.2c18.9-18.9,49.6-18.9,68.5,0l115.4,115.4c18.9,18.9,18.9,49.6,0,68.5L1207.8,1024L1718.1,1534.2z"/>
            </Canvas>
        </Viewbox>
    </DataTemplate>

<Path

Fill="{Binding Foreground, RelativeSource={RelativeSource FindAncestor, AncestorType={x:Type Button}}}"

</Canvas>

</Viewbox>

</DataTemplate>

استایل ها

AutoCompleteTextFieldRemoveButtonStyle: استایل مربوط به دکمه حذف آیتم از لیست پیشنهادی.
AutoCompleteTextFieldTextBoxStyle: استایل مربوط به TextBox های موجود در داخل کنترل AutoCompleteTextField.
AutoCompleteTextFieldPopupStyle: استایل مربوط به Popup که لیست پیشنهادی در داخل آن نمایش داده می شود.
AutoCompleteTextFieldListBoxItemStyle: استایل مربوط به آیتم های ListBox.
AutoCompleteTextFieldListBoxStyle: استایل مربوط به ListBox.

و در آخر هم قالب مربوط به کنترل AutoCompleteTextField قرار دارد که از موارد گفته شده در بالا در داخل آن استفاده شده است. اگر در درک بخشی از کدهای بالا مشکل داشتید میتوانید در قسمت نظرات یا انجمن سایت مطرح کنید تا برای شما توضیح داده شود.

ایجاد پروژه WPF

برای تست کنترلی که ایجاد کرده ایم، یک پروژه از نوع WPF با نام AutoCompleteTextBox.Demo اضافه کنید. و سپس Reference مربوط به پروژه WPF Custom Control Library را به آن اضافه کنید.

استفاده از کنترل AutoCompleteTextField

بعد از انجام مرحله بالا، فایل App.xaml را باز کنید و Resource مربوط به کنترل سفارشی را به شکل زیر به آن اضافه کنید.

<Application
    x:Class="AutoCompleteTextBox.Demo.App"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    StartupUri="MainWindow.xaml">
    <Application.Resources>
        <ResourceDictionary>
            <ResourceDictionary.MergedDictionaries>
                <ResourceDictionary Source="pack://application:,,,/AutoCompleteTextBox;component/Themes/Generic.xaml"/>
            </ResourceDictionary.MergedDictionaries>
        </ResourceDictionary>
    </Application.Resources>
</Application>

<Application

x:Class="AutoCompleteTextBox.Demo.App"

xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"

xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"

StartupUri="MainWindow.xaml">

<Application.Resources>

<ResourceDictionary.MergedDictionaries>

</ResourceDictionary.MergedDictionaries>

</ResourceDictionary>

</Application.Resources>

</Application>

سپس یک کلاس جدید با نام RelayCommand.cs اضافه کنید و محتوای آن را به شکل زیر تغییر دهید. این کلاس برای هندل کردن Command ها استفاده می شود.

using System;
using System.Diagnostics;
using System.Windows.Input;

namespace AutoCompleteTextBox.Demo
{
    public class RelayCommand : ICommand
    {
        #region Fields

        private readonly Action<object> _execute;
        private readonly Predicate<object> _canExecute;

        #endregion Fields

        #region Constructors

        public RelayCommand(Action<object> execute)
            : this(execute, null)
        {
        }

        public RelayCommand(Action<object> execute, Predicate<object> canExecute)
        {
            _execute = execute ?? throw new ArgumentNullException(nameof(execute));
            _canExecute = canExecute;
        }

        #endregion Constructors

        #region ICommand Members

        [DebuggerStepThrough]
        public bool CanExecute(object parameters)
        {
            return _canExecute?.Invoke(parameters) ?? true;
        }

        public event EventHandler CanExecuteChanged
        {
            add { CommandManager.RequerySuggested += value; }
            remove { CommandManager.RequerySuggested -= value; }
        }

        public void Execute(object parameters)
        {
            _execute(parameters);
        }

        #endregion ICommand Members
    }
}

using System;

using System.Diagnostics;

using System.Windows.Input;

namespace AutoCompleteTextBox.Demo

{

public class RelayCommand : ICommand

{

#region Fields

private readonly Action<object> _execute;

private readonly Predicate<object> _canExecute;

#endregion Fields

#region Constructors

public RelayCommand(Action<object> execute)

: this(execute, null)

{

}

public RelayCommand(Action<object> execute, Predicate<object> canExecute)

{

_execute = execute ?? throw new ArgumentNullException(nameof(execute));

_canExecute = canExecute;

}

#endregion Constructors

#region ICommand Members

[DebuggerStepThrough]

public bool CanExecute(object parameters)

{

return _canExecute?.Invoke(parameters) ?? true;

}

public event EventHandler CanExecuteChanged

{

add { CommandManager.RequerySuggested += value; }

remove { CommandManager.RequerySuggested -= value; }

}

public void Execute(object parameters)

{

_execute(parameters);

}

#endregion ICommand Members

}

همچنین محتوای فایل های MainWindow.xaml و MainWindow.xaml.cs را به شکل زیر تغییر دهید.

فایل xaml:

<Window
    x:Class="AutoCompleteTextBox.Demo.MainWindow"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    xmlns:local="clr-namespace:AutoCompleteTextBox;assembly=AutoCompleteTextBox"
    mc:Ignorable="d"
    Title="SourceSara.Com"
    Height="500"
    Width="600"
    MinWidth="600"
    MinHeight="500"
    Background="#1B2738"
    TextElement.FontFamily="Roboto"
    TextBlock.FontFamily="Roboto"
    WindowStartupLocation="CenterScreen">
    <Window.Resources>
        <Style TargetType="{x:Type local:AutoCompleteTextField}">
            <Setter Property="ListBoxSelectedItemBackground" Value="#323D4C" />
            <Setter Property="ListBoxItemMouseOverBackground" Value="#182333" />
            <Setter Property="SuggestionListMaxHeight" Value="240" />
            <Setter Property="MaxSuggestionItems" Value="5" />
            <Setter Property="MinimumMatchPercentage" Value="30" />
            <Setter Property="VerticalAlignment" Value="Center" />
            <Setter Property="HorizontalAlignment" Value="Center" />
            <Setter Property="Foreground" Value="#fff" />
            <Setter Property="Background" Value="#3C4C5E" />
            <Setter Property="Margin" Value="16" />
            <Setter Property="Width" Value="360" />
            <Setter Property="Padding" Value="12" />
            <Setter Property="FontSize" Value="16" />
            <Setter Property="CornerRadius" Value="16" />
        </Style>
    </Window.Resources>
    <StackPanel Margin="0,32,0,0">
        <TextBlock
            FontSize="24"
            Margin="0,24"
            TextAlignment="Center"
            Foreground="#8ab4f8"
            Text="WPF Auto Complete Text Field"/>

        <Grid
            HorizontalAlignment="Center"
            VerticalAlignment="Center"
            TextBlock.FontSize="16"
            TextBlock.Foreground="#a0afc0">
            <Grid.RowDefinitions>
                <RowDefinition Height="Auto"/>
                <RowDefinition Height="Auto"/>
            </Grid.RowDefinitions>

            <StackPanel Grid.Row="0" Margin="16">
                <TextBlock
                    Text="Left to right"
                    Margin="16,0"/>
                <local:AutoCompleteTextField
                    Hint="Search..."
                    RemoveItemCommand="{Binding LtrDeleteCommand}"
                    ItemsSource="{Binding LtrItems}"/>
            </StackPanel>

            <StackPanel Grid.Row="1"  Margin="16">
                <TextBlock
                    Text="Right to left"
                    Margin="16,0"/>
                <local:AutoCompleteTextField
                    FlowDirection="RightToLeft"
                    Hint="جستجو..."
                    RemoveItemCommand="{Binding RtlDeleteCommand}"
                    ItemsSource="{Binding RtlItems}"/>
            </StackPanel>
        </Grid>

        <local:MadeByAmRo
            Margin="0,64,0,0"
            Foreground="#a0afc0"
            AmRoLogoBrush="#8ab4f8"
            HeartBrush="#f28b82"/>
    </StackPanel>
</Window>

<Window

x:Class="AutoCompleteTextBox.Demo.MainWindow"

xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"

xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"

xmlns:d="http://schemas.microsoft.com/expression/blend/2008"

xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"

xmlns:local="clr-namespace:AutoCompleteTextBox;assembly=AutoCompleteTextBox"

mc:Ignorable="d"

Title="SourceSara.Com"

Height="500"

Width="600"

MinWidth="600"

MinHeight="500"

Background="#1B2738"

TextElement.FontFamily="Roboto"

TextBlock.FontFamily="Roboto"

WindowStartupLocation="CenterScreen">

<Window.Resources>

</Style>

</Window.Resources>

<TextBlock

FontSize="24"

Margin="0,24"

TextAlignment="Center"

Foreground="#8ab4f8"

Text="WPF Auto Complete Text Field"/>

<Grid

HorizontalAlignment="Center"

VerticalAlignment="Center"

TextBlock.FontSize="16"

TextBlock.Foreground="#a0afc0">

<Grid.RowDefinitions>

</Grid.RowDefinitions>

<TextBlock

Text="Left to right"

Margin="16,0"/>

<local:AutoCompleteTextField

Hint="Search..."

RemoveItemCommand="{Binding LtrDeleteCommand}"

ItemsSource="{Binding LtrItems}"/>

</StackPanel>

<TextBlock

Text="Right to left"

Margin="16,0"/>

<local:AutoCompleteTextField

FlowDirection="RightToLeft"

Hint="جستجو..."

RemoveItemCommand="{Binding RtlDeleteCommand}"

ItemsSource="{Binding RtlItems}"/>

</StackPanel>

</Grid>

<local:MadeByAmRo

Margin="0,64,0,0"

Foreground="#a0afc0"

AmRoLogoBrush="#8ab4f8"

HeartBrush="#f28b82"/>

</StackPanel>

</Window>

فایل cs:

using System.Collections.ObjectModel;
using System.ComponentModel;
using System.Linq;
using System.Windows.Input;

namespace AutoCompleteTextBox.Demo
{
    public partial class MainWindow : INotifyPropertyChanged
    {
        #region Fields

        private ObservableCollection<string> _ltrItems;
        private ObservableCollection<string> _rtlItems;

        #endregion

        #region Constructors

        public MainWindow()
        {
            InitializeComponent();
            AddDummyData();
            RegisterCommands();

            DataContext = this;
        }

        #endregion

        #region INotifyPropertyChanged

        public event PropertyChangedEventHandler PropertyChanged;

        #endregion

        #region Properties

        public ObservableCollection<string> LtrItems
        {
            get => _ltrItems;
            set
            {
                _ltrItems = value;
                PropertyChanged?.Invoke(this, new PropertyChangedEventArgs(nameof(LtrItems)));
            }
        }

        public ObservableCollection<string> RtlItems
        {
            get => _rtlItems;
            set
            {
                _rtlItems = value;
                PropertyChanged?.Invoke(this, new PropertyChangedEventArgs(nameof(RtlItems)));
            }
        }


        #endregion

        #region Commands

        public ICommand LtrDeleteCommand { get; set; }
        public ICommand RtlDeleteCommand { get; set; }

        #endregion

        #region Command handlers

        private void HandleLtrDeleteCommand(object parameter)
        {
            var item = parameter.ToString();
            var filteredItems = LtrItems.Where(i => i.ToLower() != item.ToLower());

            LtrItems = new ObservableCollection<string>(filteredItems);
        }

        private void HandleRtlDeleteCommand(object parameter)
        {
            var item = parameter.ToString();
            var filteredItems = RtlItems.Where(i => i.ToLower() != item.ToLower());

            RtlItems = new ObservableCollection<string>(filteredItems);
        }

        #endregion

        #region Helper methods

        private void AddDummyData()
        {
            LtrItems = new ObservableCollection<string>
            {
                "window",
                "How to connect to sql in c#",
                "wood",
                "Good for one",
                "first",
                "first time search",
                "WPF custom text field",
                "How to create custom window chrome in wpf",
                "Create radio button with custom functionality in wpf",
                "Good for one, good for all",
                "Submit your email address to stay informed",
                "Open file in c++",
                "C# display system information",
                "How to connect to sql server from remote computer",
                "the best practice for checking internet connection",
            };

            RtlItems = new ObservableCollection<string>
            {
                "سلام",
                "سلام چطوری",
                "خوبم تو چطوری",
                "سورس سرا",
                "سورس کدهای آماده",
                "انجمن سورس سرا",
                "سورس بازی مار",
                "سورس پیام رسان به زبان سی شارپ",
                "سورس برنامه حساب داری",
                "سورس بازی شطرنج به زبان سی پلاس پلاس",
                "دانلود نرم افزار ویژوال استودیو",
                "دانلود نرم Visual Studio 2019",
            };
        }

        private void RegisterCommands()
        {
            LtrDeleteCommand = new RelayCommand(HandleLtrDeleteCommand);
            RtlDeleteCommand = new RelayCommand(HandleRtlDeleteCommand);
        }

        #endregion
    }
}

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

using System.Collections.ObjectModel;

using System.ComponentModel;

using System.Linq;

using System.Windows.Input;

namespace AutoCompleteTextBox.Demo

{

public partial class MainWindow : INotifyPropertyChanged

{

#region Fields

private ObservableCollection<string> _ltrItems;

private ObservableCollection<string> _rtlItems;

#endregion

#region Constructors

public MainWindow()

{

InitializeComponent();

AddDummyData();

RegisterCommands();

DataContext = this;

}

#endregion

#region INotifyPropertyChanged

public event PropertyChangedEventHandler PropertyChanged;

#endregion

#region Properties

public ObservableCollection<string> LtrItems

{

get => _ltrItems;

set

{

_ltrItems = value;

PropertyChanged?.Invoke(this, new PropertyChangedEventArgs(nameof(LtrItems)));

}

public ObservableCollection<string> RtlItems

{

get => _rtlItems;

set

{

_rtlItems = value;

PropertyChanged?.Invoke(this, new PropertyChangedEventArgs(nameof(RtlItems)));

}

#endregion

#region Commands

public ICommand LtrDeleteCommand { get; set; }

public ICommand RtlDeleteCommand { get; set; }

#endregion

#region Command handlers

private void HandleLtrDeleteCommand(object parameter)

{

var item = parameter.ToString();

var filteredItems = LtrItems.Where(i => i.ToLower() != item.ToLower());

LtrItems = new ObservableCollection<string>(filteredItems);

}

private void HandleRtlDeleteCommand(object parameter)

{

var item = parameter.ToString();

var filteredItems = RtlItems.Where(i => i.ToLower() != item.ToLower());

RtlItems = new ObservableCollection<string>(filteredItems);

}

#endregion

#region Helper methods

private void AddDummyData()

{

LtrItems = new ObservableCollection<string>

{

"window",

"How to connect to sql in c#",

"wood",

"Good for one",

"first",

"first time search",

"WPF custom text field",

"How to create custom window chrome in wpf",

"Create radio button with custom functionality in wpf",

"Good for one, good for all",

"Submit your email address to stay informed",

"Open file in c++",

"C# display system information",

"How to connect to sql server from remote computer",

"the best practice for checking internet connection",

};

RtlItems = new ObservableCollection<string>

{

"سلام",

"سلام چطوری",

"خوبم تو چطوری",

"سورس سرا",

"سورس کدهای آماده",

"انجمن سورس سرا",

"سورس بازی مار",

"سورس پیام رسان به زبان سی شارپ",

"سورس برنامه حساب داری",

"سورس بازی شطرنج به زبان سی پلاس پلاس",

"دانلود نرم افزار ویژوال استودیو",

"دانلود نرم Visual Studio 2019",

};

}

private void RegisterCommands()

{

LtrDeleteCommand = new RelayCommand(HandleLtrDeleteCommand);

RtlDeleteCommand = new RelayCommand(HandleRtlDeleteCommand);

}

#endregion

}

پروژه را Build و Run کنید تا نتیجه نهایی را مشاهده کنید.

تصویر wpf-auto-complete-textbox_9197_1 آموزش ساخت AutoCompleteTextBox در WPF

تصویر wpf-auto-complete-textbox_9197_2 آموزش ساخت AutoCompleteTextBox در WPF

سورس کامل پروژه در GitHub

آموزش ساخت ScrollBar سفارشی آموزش ساخت Calendar سفارشی

دسته ها: آموزش ها - تکنولوژی WPF

آموزش پایتون برای یادگیری ماشین (دوره کامل برای مبتدیان)

آموزش پروژه محور سی شارپ (سیستم مدیریت پرسنل و پرداخت حقوق) تحت شبکه

آموزش پروژه محور WPF در سی شارپ به صورت متریال دیزاین (مدیریت مطب پزشکی)

آموزش پروژه محور سی شارپ (سیستم ثبت نام و انتخاب واحد دانشجویان)

فیلم آموزش WPF در سی شارپ به صورت پروژه محور | مدیریت بخشنامه تحت شبکه

فیلم آموزش WPF در سی شارپ از مقدماتی تا پیشرفته

آموزش سی شارپ به صورت پروژه محور (مدیریت فروشگاه)

آموزش WPF

مباحث پایه WPF

مثال های کاربردی WPF

آموزش ساخت AutoCompleteTextBox در WPF

آموزش ساخت AutoCompleteTextBox در WPF

توضیحات

مراحل آموزش

ایجاد پروژه WPF Custom Control Library

ایجاد کنترل AutoCompleteTextField

استایل ها

ایجاد پروژه WPF

استفاده از کنترل AutoCompleteTextField

آموزش ساخت برنامه دسکتاپ با React و Electron

سورس نرم افزار پیام رسان به زبان سی شارپ

سورس بازوی ربات سه بعدی با OpenGL به زبان C++

سورس مسابقه ماشین ها با OpenGL به زبان C++

سورس ایستگاه اتوبوس با OpenGL به زبان C++

سورس ربات سه بعدی با OpenGL به زبان C++

سورس دوچرخه سه بعدی با OpenGL به زبان C++

سورس مدیریت رستوران به زبان سی شارپ با تکنولوژی WPF
